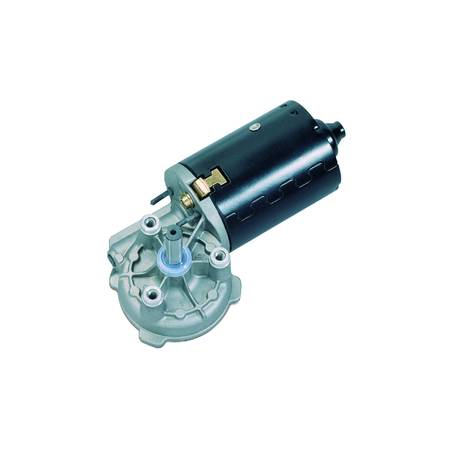

Nidec DC motor with worm gearbox
Technical description
Crankcase: rolled, corrosion-resistant
Magnet field: permanent magnet
Mounting armature, A-position: ball-bearing
Mounting armature, B-position: cup-bearing
Gear type: worm gear wheel
Gear box: aluminium pressure die casting
Gear wheel: plastic
Lubrication: grease, permanent lubrication
Interface mechanical: output shaft
Interface electrical: litz wire with connector or tin-plated litz wire
Rated voltage: 24 V
No-load speed: n0 35 min-1
Nominal torque: Mn 6 Nm
Rated voltage: 24 V
No-load speed: n0 90 min-1
Nominal torque: Mn 4 Nm
Rated voltage: 24 V
No-load speed: n0 270 min-1 .
Nominal torque Mn 1 Nm
