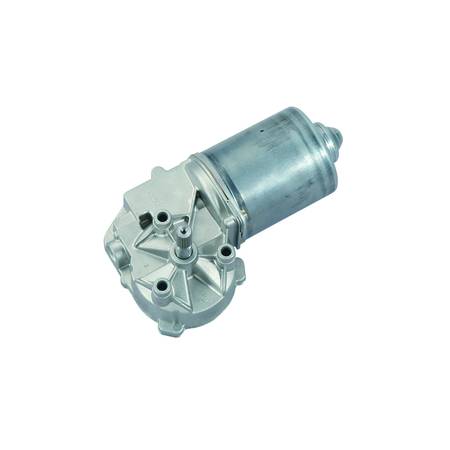

Nidec DC motor with worm gearbox
Description:
Motor housing Sheet steel deep drawn & protected against corrosion
Magnetic field Permanent magnet
Type of transmission Worm gear transmission
Transmission housing Zinc die casting
Gearwheel material Plastic, metal
Transmission lubrication Grease, permanent lubrication
Mechanical interface Drive shaft
Electrical interface Plug
Sensor Optional
Thermal protection Optional
Interference suppression Optional
Applications:
Industry
Garage door and door opener, pumps, lubricating technology, household devices, linear drives
Automobile
Tailgate adjustment
Rated voltage: 12 V
No-load speed: n0 30 min-1
Nominal torque: Mn 4 Nm
Rated voltage: 24 V
No-load speed: n0 195 min-1
Nominal torque: Mn 4 Nm
Rated voltage: 24 V
No-load speed: n0 270 min-1 .
Nominal torque Mn 1 Nm
