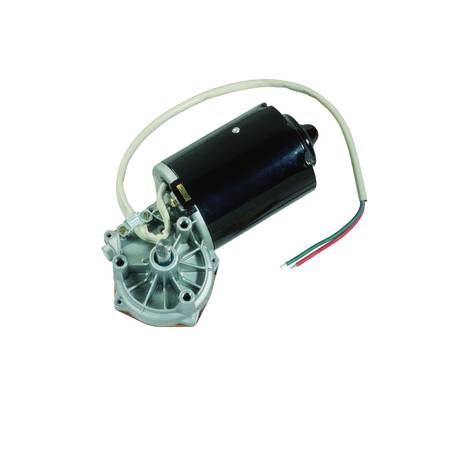

Nidec DC motor with worm gearbox
Description:
Motor housing Sheet steel deep drawn & protected against corrosion
Magnetic field Permanent magnet
Type of transmission Worm gear transmission
Transmission housing Zinc die casting
Gearwheel material Plastic, laminated fabric, metal
Transmission lubrication Grease, permanent lubrication
Mechanical interface Drive shaft
Electrical interface Plugs or stranded wires with plugs or tin-plated stranded wires
Sensor –
Thermal protection Optional
Interference suppression Optional
Applications:
Industry
General mechanical engineering, machines, agricultural technology, office machines, laboratory devices, medical technology, photo/optics, cleaning devices, printing machines
Rated voltage: 24 V
No-load speed: n0 90 min-1
Nominal torque: Mn 4 Nm
Rated voltage: 24 V
No-load speed: n0 195 min-1
Nominal torque: Mn 4 Nm
Rated voltage: 24 V
No-load speed: n0 140 min-1
Nominal torque Mn 2 Nm
