Winch drives 800 SERIES

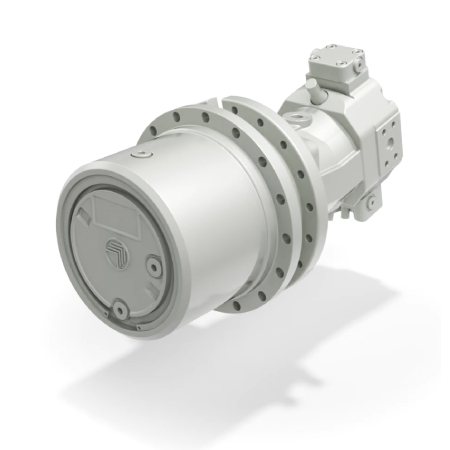

Winch drives 800 SERIES is designed for rope winding applications. It can be placed inside the drum. It is manufactured with different gear ratios and is equipped with heavy-duty bearings. Another option is a parking or emergency multi-purpose disc brake.
Torque
5,000 Nm … 42,000 Nm
Rope pull
N35,000 to N170,000
Gear ratio
21 … 108
Main data
Rotating casing flange
Robust construction
High torques
High load
Anti block – as security against reverse rotation (on customer request)
Applicable hydraulic motors
Flanged axial piston motors
Circulating motors
Brake
Hydraulic parking brake (on request)
|
Type
|
Torque range Nm
|
|---|---|
|
805 W2
|
5.000
|
|
806 W2
|
10.000
|
|
810 F2
|
17.500
|
|
811 W2
|
27.000
|
|
813 W3
|
42.000
|
|
Type
|
Max. rope pull N
|
|---|---|
|
805 W2
|
35.000
|
|
806 W2
|
50.000
|
|
810 F2
|
85.000
|
|
811 W2
|
120.000
|
|
813 W3
|
170.000
|
