Series TR

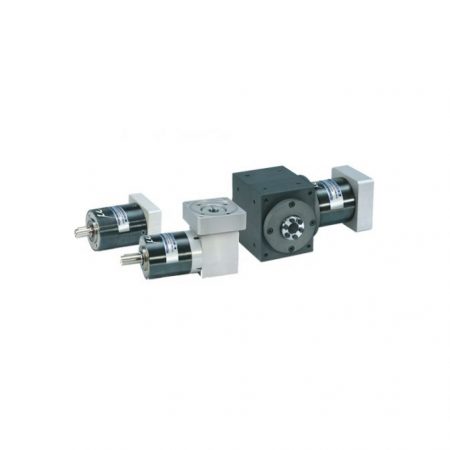

TR planetary drives are uniquely developed for extremely reduced backlash, quiet operation and simplified motor assembly. TR units are reliable and comparable to servo motors from most manufacturers.
Standard clearance
1 stage 5′
2 stages 5′
3 stages 7′
Reduced willpower
1 stage 3′
2 stages 3′
3 stages 5′
Gear ratio
1 stage 3 ≤ i ≤ 10
2 stages 9 ≤ i ≤ 100
3 stages 48 ≤ i ≤ 1000
Specification Series TR
| Type | Max nominal (Nm) | Torque (Nm) acceleration |
| TR 053 | 20 | 30 |
| TR 060 | 30 | 45 |
| TR 080 | 70 | 100 |
| TR 105 | 170 | 250 |
| TR 130 | 450 | 700 |
| TR 160 | 700 | 950 |
| TR 190 | 1000 | 1200 |
Download
If you are interested, contact us at the e-mail address info@opis.sk
