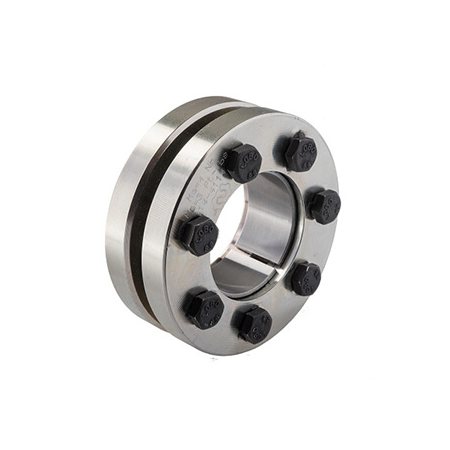

Shrink Disc MAV 2108 light series

Features

  • external locking device for hollow shaft (hub) – shaft connection
  • three-part design
  • self-releasing tapers, greased with MoS2 (μ = 0.05)
  • screws greased with MoS2 (μ = 0.10)
  • zinc plated outer rings
  • O-Ring between outer rings from size d = 140 mm and above
  • MAV 2108: light series, low capacity
  • tolerance of hub outer diameter: h8
  • surface finish of shaft and hub Ra < 3.2 μm
  • shaft – hub bore contact surface grease-free and dry (μ = 0.15)

Composition

  • slotted inner ring
  • front outer ring
  • rear outer ring
  • set of hexagonal head cap screws, grade 10.9 (size<M6 of grade 8.8)
