MAV 2008

Features

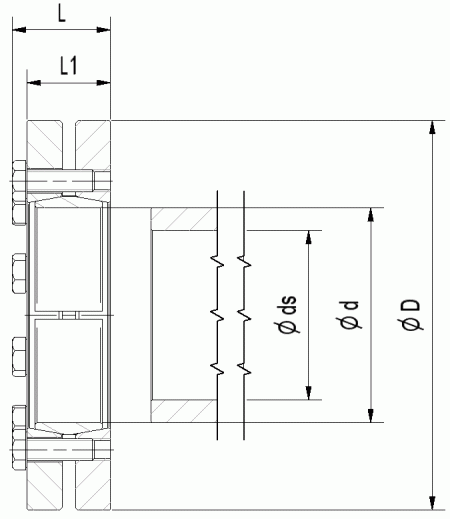

  • shaft to hollow shaft (hub) connection
  • 3-part design
  • self-releasing tapers
  • screws DIN 931/933 grade A2-70
  • screws and tapers lubricated with food grade grease
  • quality H-1 FDA approved
  • shaft / hub surface finish Ra < 3,2 mm
  • hub outer diameter tolerance: h8
  • hub bore / shaft contact area grease-free and dry
