MAV 5061

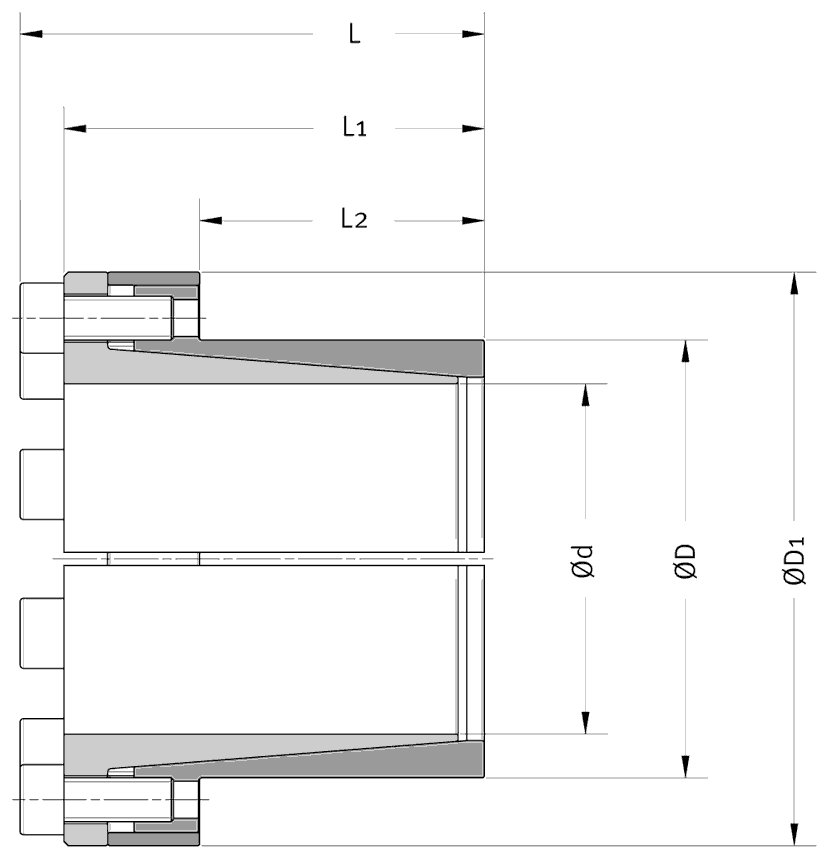

The MAV 5061 clamping sleeve provides a tight connection with zero backlash between the shaft and hubs such as gears, pulleys, levers, rotors and others.

Specification Clamping sleeve MAV 5061

Features

  • medium capacity
  • self-centering, self-locking
  • fixed axial hub position during tightening
  • single taper design
  • well suited for connection of thin walled hubs
  • tolerances: shaft h7-h11; hub bore H7-H11
  • surface finish of shaft and hub bore Ra < 3.2 µm

Composition

  • slotted inner ring with integrated push-off threads
  • slotted outer ring
  • spacer
  • set of socket head cap screws, grade A4-80
