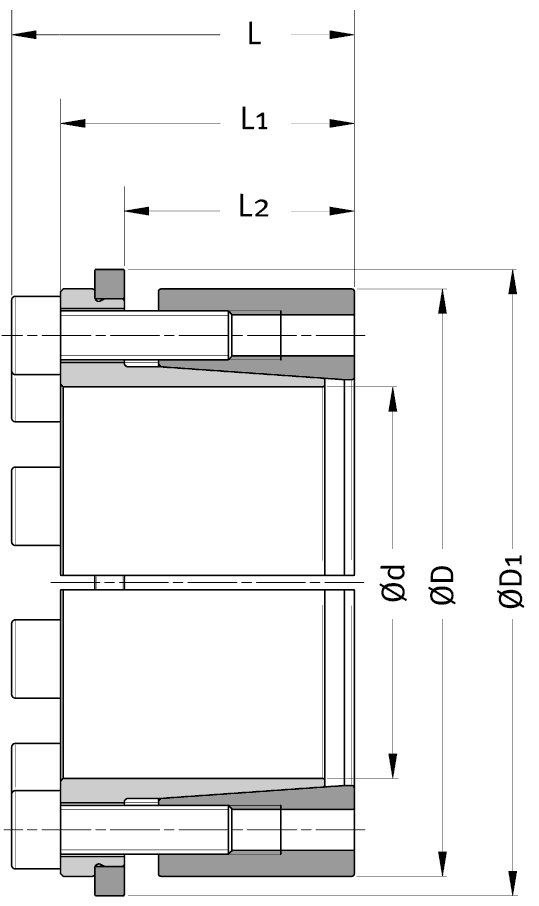

MAV 6902

Features

  • medium capacity
  • self-centering, self-locking
  • fixed axial hub position during tightening
  • single taper design
  • high contact length, low contact pressures
  • tolerances: shaft h8; hub bore H8
  • surface finish of shaft and hub bore R a < 3.2 µm

Composition

  • slotted inner ring, with integrated push-off threads
  • slotted outer ring
  • spacer
  • set of socket head cap screws, grade 12.9
