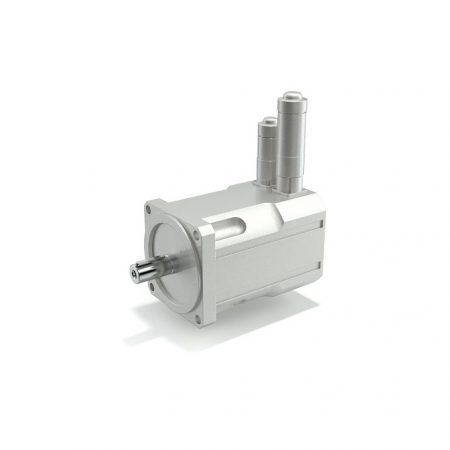

BCR Series

BCR high-performance servomotors are designed to satisfy the needs of continuous and transient high torque applications. A wide torque range and above-average instantaneous overload ratings make BCR servomotors robust enough for even the most demanding drive applications. Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity with EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guarantee secure electrical connection under all ambient operating conditions.



Main options

DC brake
Optional 24 Vdc

Feedback

Resolver (default)
Optional Hiperface encoder (single- or multi-turn)

Temperature sensor

PTC included



Sizes

7 flange sizes

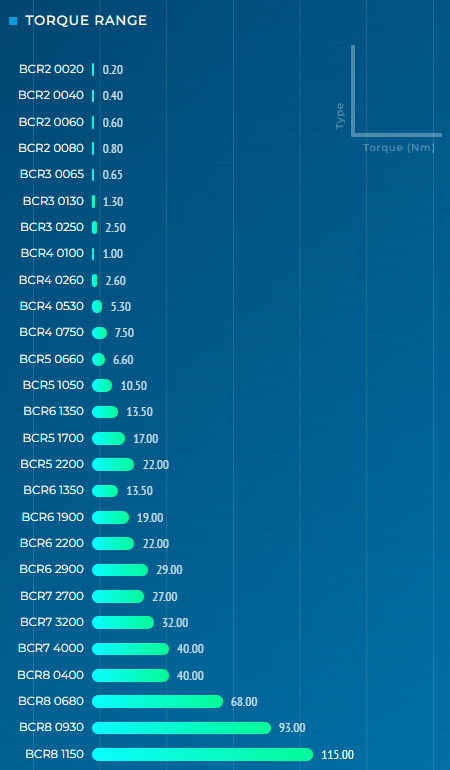

Torque range

0.2 … 115 Nm

Degree of protection

IP65
IP67 (optional)

Rated speed

2000, 3000, 4500 rpm
(depending on selected torque)

Inertia

0,06 …190 (kgm² x 10-4)

Certifications

CE, UL

DC Brake

Optional 24 Vdc

Conformity

2014/34/EU (LVD) and 2014/30/EU (EMC)

Power supply & power range

230, 400 Vac
