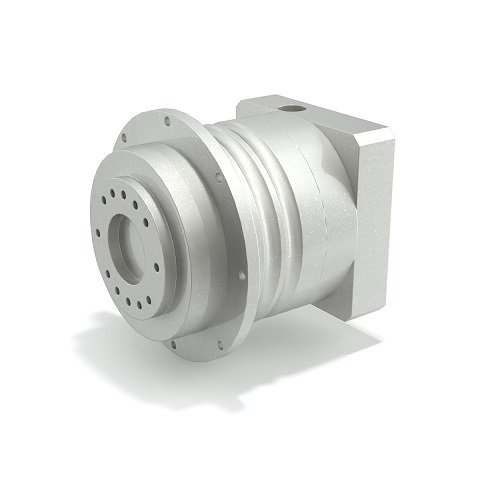

Series TQF

The TQF series is equipped with a standardized compact flange interface for easy installation. This robust gearbox within its product category is characterized by a high tilting moment, high stiffness and overload capacity.

Sizes
060, 070, 090, 130, 160

Gear ratios
1 grade 3 … 10
2 degrees 16 … 100

Maximum radial force
2,400 … 29,000 N

Degree of protection
IP65

Input speed
Up to 6000 min-1

Standard clearance
1-degree < than 3 arcmin
2-degree < than 5 arcmin

Torsional stiffness
12 … 500 Nm/arcmin

Lubrication
Standard; intended for the food industry

Output
Flange

Entrance
Motor adapter; without motor adapter

Specification Series TQF
Type Torque Nm
TQF 060 30
TQF 070 70
TQF 090 200
TQF 130 400

Performance line
