Series TQ

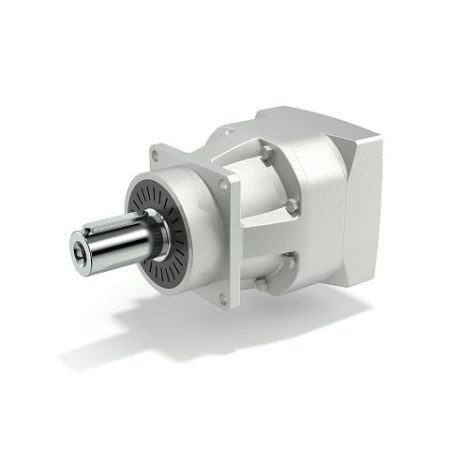

The TQ series scores in every performance category: high torque density, high overload capacities, exceptional precision and low vibration. The TQ series is especially suitable for the very demanding requirements of servo systems, such as fast dynamics and frequent reverse movement, precise positioning, motion control and a high number of starts and stops.

The technical design of this gearbox also enables high axial and radial loads on the output shaft and very quiet operation. The main sectors in which the new TQ serves are: industrial automation systems, robotics, machine tools, packaging machines and many other applications requiring high performance servo drive systems.

Sizes
060, 070, 090, 130, 160

Gear ratios
1 grade 3 … 10
2 degrees 16 … 100

Maximum radial force
1,850 … 15,000 N

Degree of protection
IP65

Input speed
Up to 6000 min-1

Standard clearance
1-degree < than 2 arcmin
2-degree < than 4 arcmin

Torsional stiffness
4.8 … 170 Nm/arcmin

Lubrication
Standard; intended for the food industry

Output
Smooth, grooveless shaft; splined shaft

Entrance
Motor adapter; without motor adapter

Specification Series TQ
Type Torque Nm
TQ 060 21
TQ 070 70
TQ 090 200
TQ 130 400
TQ 160 800
