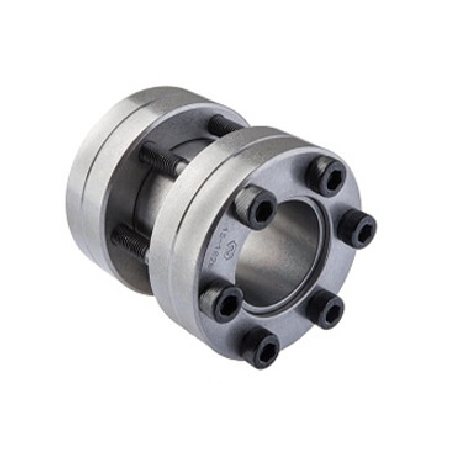

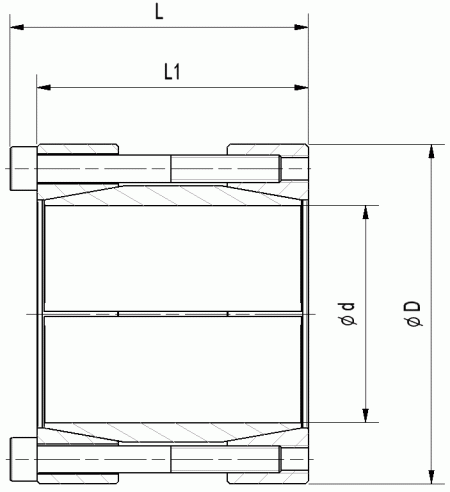

MAV 1004

Features

  • rigid shaft-to-shaft coupling
  • low capacity
  • three-part design
  • oiled tapers (self-locking) and screws
  • connection of shafts with different diameters is possible, through stepped bore inner ring or adapter sleeve
  • shafts tolerance: h7 – h9
  • shafts surface fi nish Ra < 3.2 μm
  • shafts – coupling contact surfaces: oiled (μ = 0.12)

Composition

  • slotted inner ring
  • front outer ring
  • rear outer ring
  • set of socket head cap screws, grade 12.9
