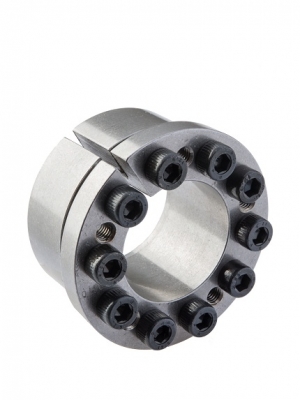

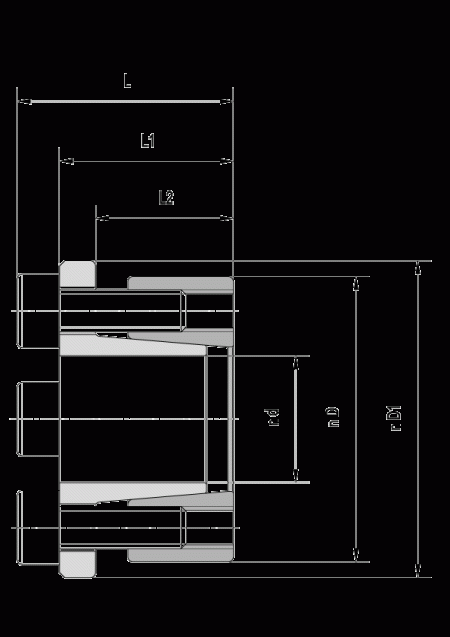

MAV 2061

Features

  • shaft-hub locking device with medium to hihg torque capacity
  • single taper design, self-centering, self-locking
  • general purpose unit, particularly recommended for servo-and-stepping-motors
  • no axial movement of hub during installation
  • good bending moment capacity
  • shaft tolerance h7-h11; hub bore tolerance H7-H11
  • shaft and hub bore surface finish Ra< 3,2 um

Composition

  • slotted inner ring, with intergrated push-off threads
  • slotted outer ring
  • set of socket head cap screw, grade 12.9

Download

MAV-1061-2061-3061-3062-3063-E-rev3-8

MAV2061_ENG-1 (1)
