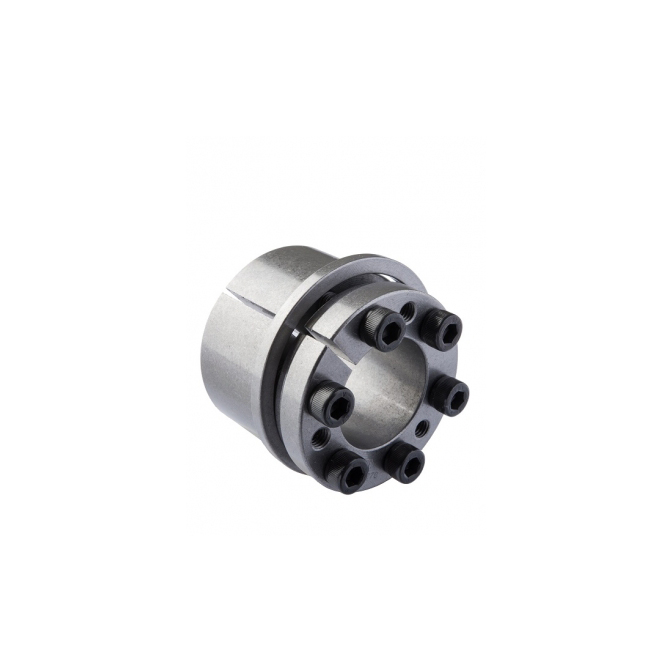

Locking assembly MAV 6902

The MAV 6902 clamping sleeve provides a tight connection with zero backlash between the shaft and hubs such as gears, pulleys, levers, rotors and others.

Specification Clamping sleeve MAV 6902


  • medium capacity
  • self-centering, self-locking
  • fixed axial hub position during tightening
  • single taper design
  • high contact length, low contact pressures
  • tolerances: shaft h8; hub bore H8
  • surface finish of shaft and hub bore R a < 3.2 µm


  • slotted inner ring, with integrated push-off threads
  • slotted outer ring
  • spacer
  • set of socket head cap screws, grade 12.9


Installation instructions
