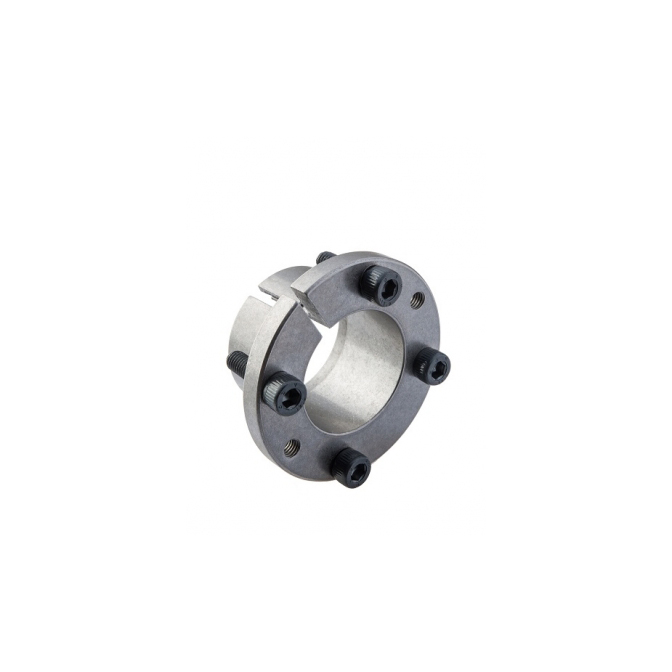

Locking assembly MAV 7107

The MAV 7107 clamping sleeve provides a tight connection with zero backlash between the shaft and hubs such as gears, pulleys, levers, rotors and others.

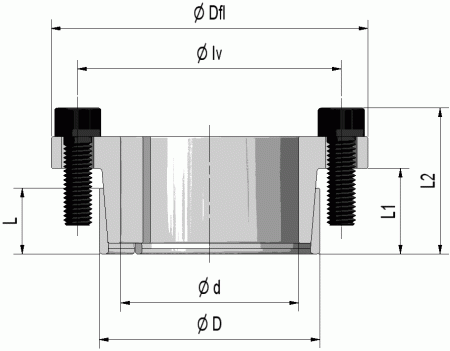

Specification Clamping sleeve MAV 7107

Features

  • low torque capacity
  • low contact pressures
  • self-locking and self-centering
  • axial fixation of hub during tightening
  • max tolerances: shaft h8; hub bore H8
  • shaft-hub bore max surface finish: Ra < = 3.2µm

If hub moves during tightening, performances and pressures increase of 58%
