MAV 3003

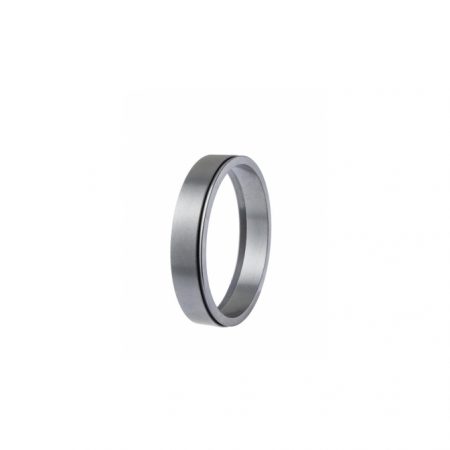

The MAV 3003 clamping sleeve provides a tight connection with zero backlash between the shaft and hubs such as gears, pulleys, levers, rotors and others.

Specification Clamping sleeve MAV 3003

Features

  • low capacity
  • not self-centering, not self-locking (self-releasing)
  • single taper design
  • low axial and radial dimensions
  • thrust ring is needed (not supplied by MAV)
  • slotted execution also available
  • tolerances (for shaft dia. < = 38mm): shaft h6; hub bore H7
  • tolerances (for shaft dia. > 38mm): shaft h8; hub bore H8
  • surface finish of shaft and hub bore Ra < 0.8µm

Composition

  • inner ring
  • outer ring
