MAV 2500

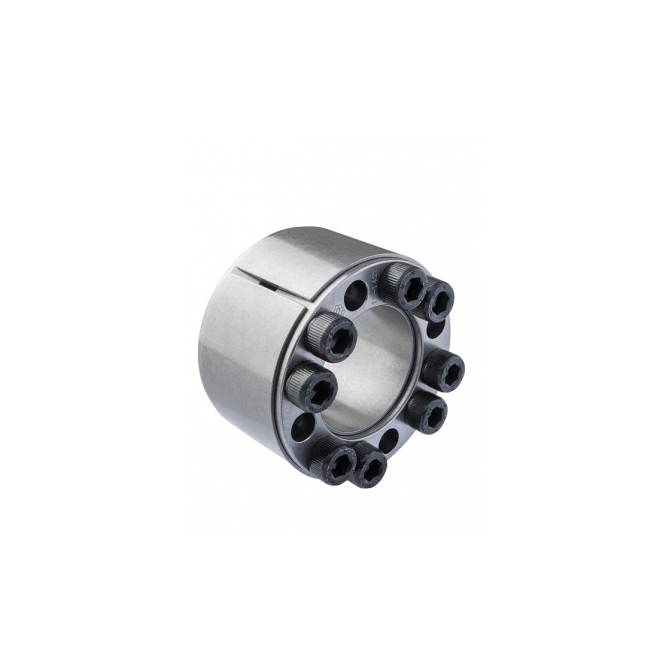

The MAV 2500 clamping sleeve provides a tight connection with zero backlash between the shaft and hubs such as gears, pulleys, levers, rotors and others.

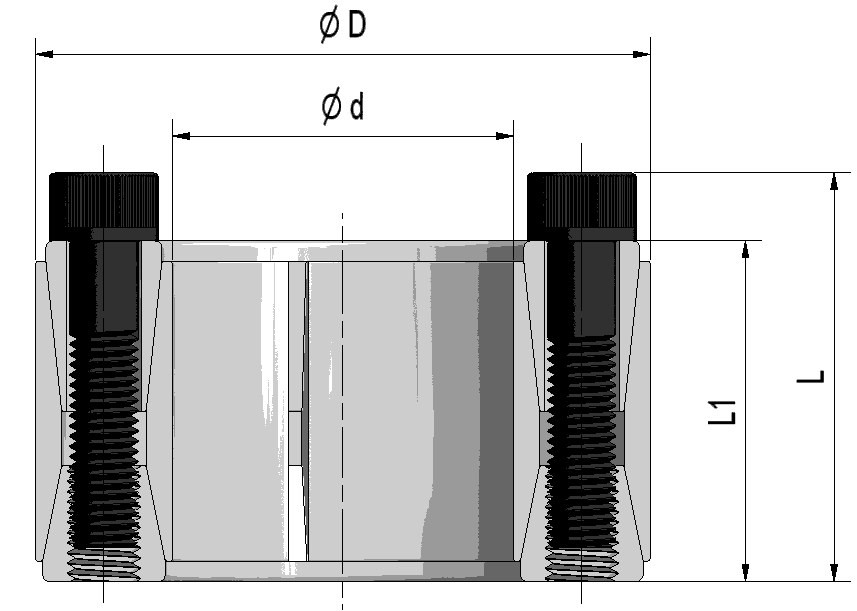

Specification Clamping sleeve MAV 2500

Features

  • medium-high torque capacity
  • self-locking and self-centering
  • axial fixation of hub during tightening
  • max tolerances: shaft h9; hub bore H9
  • shaft-hub bore max surface finish: Ra < = 3.2 µm

Download

MAV-2500-E-rev1-1-1

MAV_2500_ENG-1
