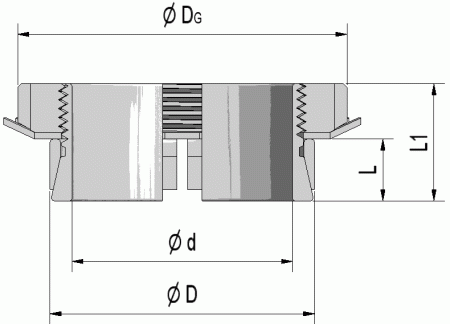

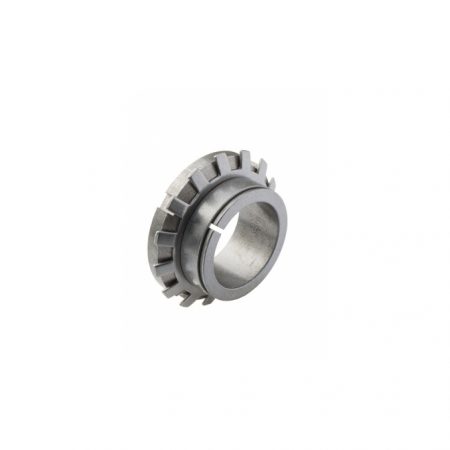

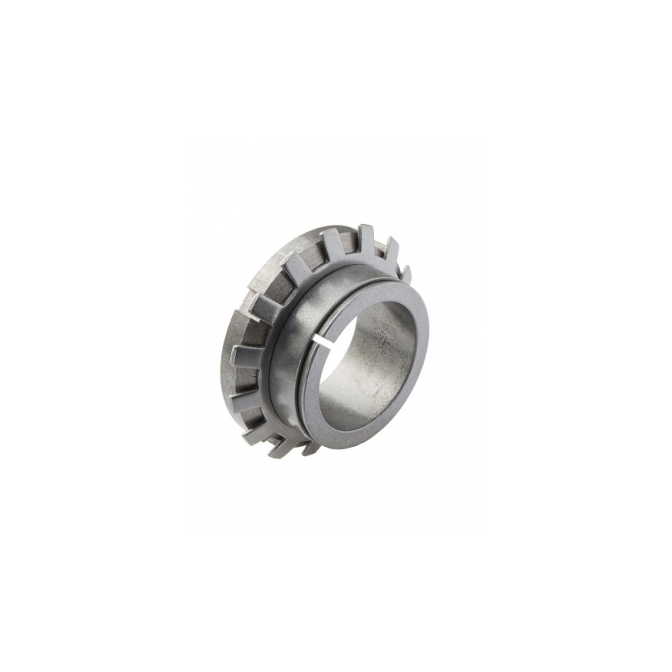

MAV 3505

Features

  • low torque capacity
  • low contact pressures
  • not self-locking and not self-centering
  • no axial fixation of hub during tightening
  • max tolerances: shaft h8; hub bore H8
  • shaft-hub bore max surface finish: Ra <=3.2 µm

Download

MAV-3505-3705-std-inox-E-rev2-2-1

MAV_3505_ENG-1
