Series 300

Description

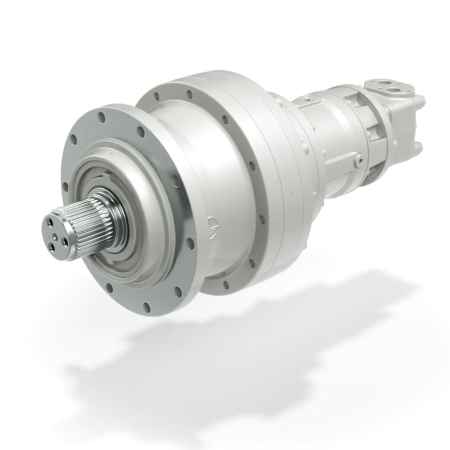

The planetary drive system of the 300 series is a compact and powerful gearbox. It provides a wide selection for many demanding applications, where shock loads occur in particular. The arrangement of the system is highly purposeful. Thanks to additional accessories intended for assembly according to the project, it is possible to select the output shaft or motor interface. Gearboxes are built in 18 sizes, intended for torques above 1,000 – 1,400,000 Nm. Finding the perfect solution for any drive is more than a wish, it is a certainty that users can always safely rely on.

Torque range
1000 … 1,100,000 Nm

Portable mechanical power
up to 1050 kW

Gear ratios
3.4 … 5,000

Transmission versions
Online
Rectangular (with spiral-bevel gear)

Output configuration
Foot and flange connection
Output shaft: splined, splined, splined hollow,
hollow with clamping sleeve

Input configuration
Flanged for axial piston engines
Hydraulic orbital motors
IEC and Nema adapters
Full input shaft

Hydraulic brake
Hydraulic parking brake release on request

Electric brake
DC or AC

Series Torque
300 1.000
301 1.750
303 2.500
304 3.600
305 5.000
306 8.500
307 12.500
309 18.000
310 25.000
311 40.000
313 55.000
314 80.000
315 100.000
316 135.000
317 170.000
318 250.000
319 350.000
321 500.000
323 800.000
325 1.100.000
