MAV 1261

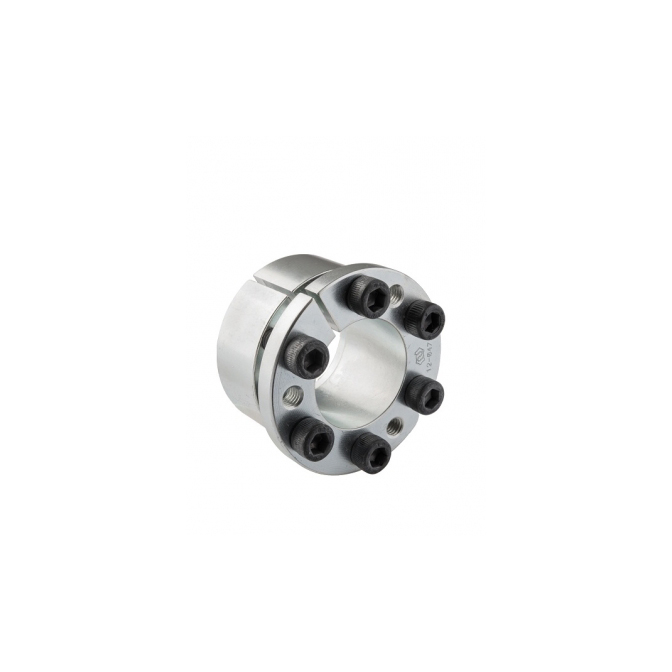

The MAV 1261 clamping sleeve provides a tight connection with zero backlash between the shaft and hubs such as gears, pulleys, levers, rotors and others.

Specification Clamping sleeve MAV 1261

Features

  • medium capacity
  • self-centering, self-locking
  • fixes axial hub position during tightening
  • single taper design
  • zinc plated rings
  • LUBRICATION. Rings, shaft, hub bore: OIL-FREE and DRY. Screws: OILED
  • tolerances: shaft +-0.08mm; hub bore +-0.08mm
  • surface finish of shaft and hub bore Ra < 3.2µm

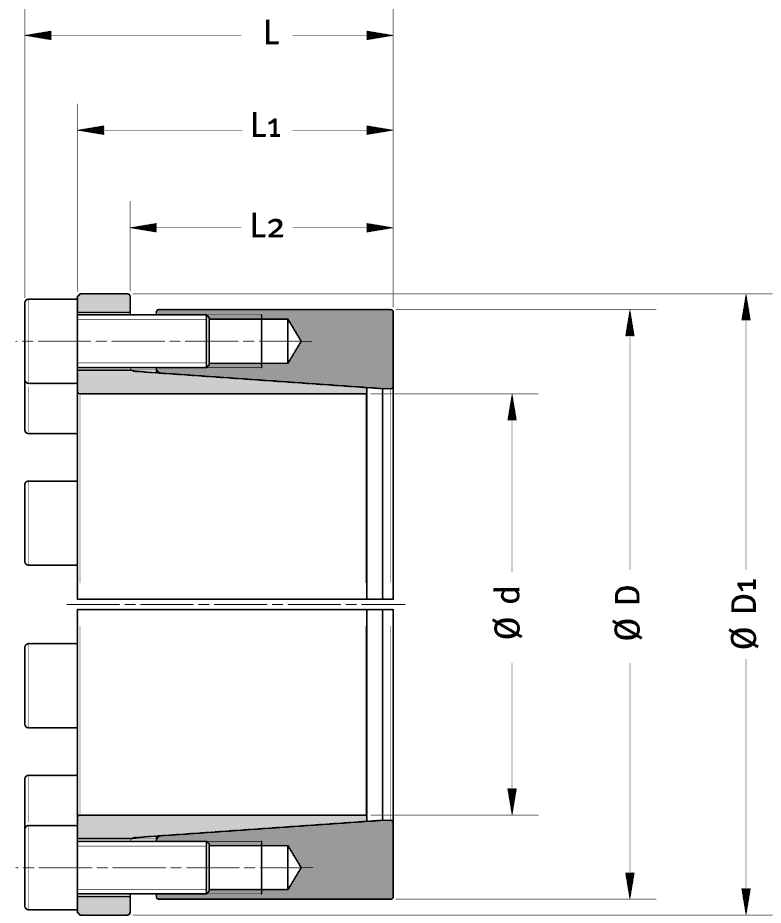

Composition

  • slotted inner ring, with integrated push-off threads
  • slotted outer ring
  • set of socket head cap screws, grade 12.9

Download

MAV-1261-E-rev1-3

MAV_1261_ENG-2
