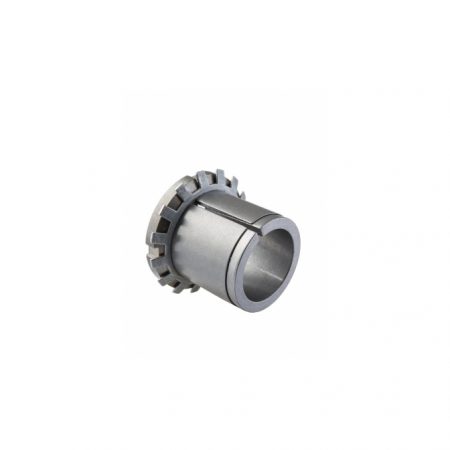

MAV 3705

The MAV 3705 clamping sleeve provides a tight connection with zero backlash between the shaft and hubs such as gears, pulleys, levers, rotors and others.

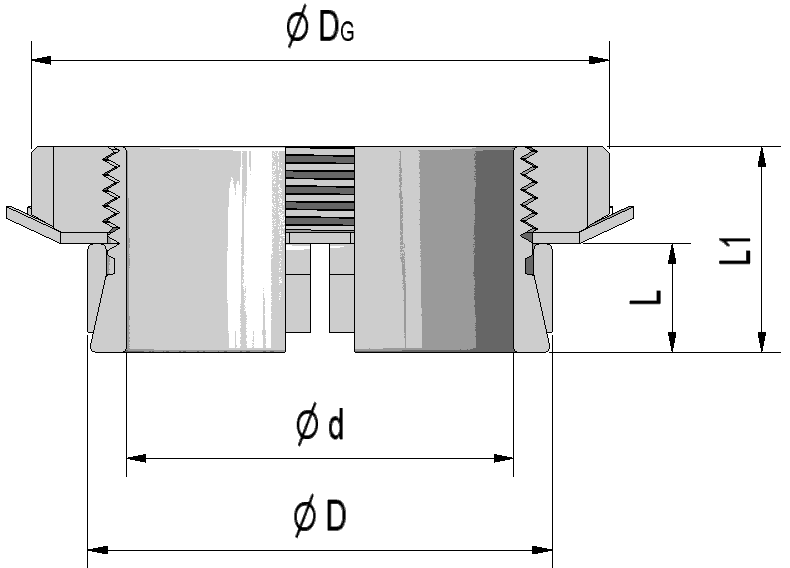

Specification Clamping sleeve MAV 3705

Features

  • low torque capacity
  • low contact pressures
  • self-locking and self-centering
  • no axial fixation of hub during tightening
  • max tolerances: shaft h8; hub bore H8
  • shaft-hub bore max surface finish: Ra < = 3.2 µm

Download

MAV-3505-3705-std-inox-E-rev2-3

MAV_3705_ENG-1
